Guardian
Product Overhang Detection System
The Premier High-Resolution Camera System for Pallet Quality Inspection
Guardian
REAL-TIME FEEDBACK ON PRODUCT OVERHANG

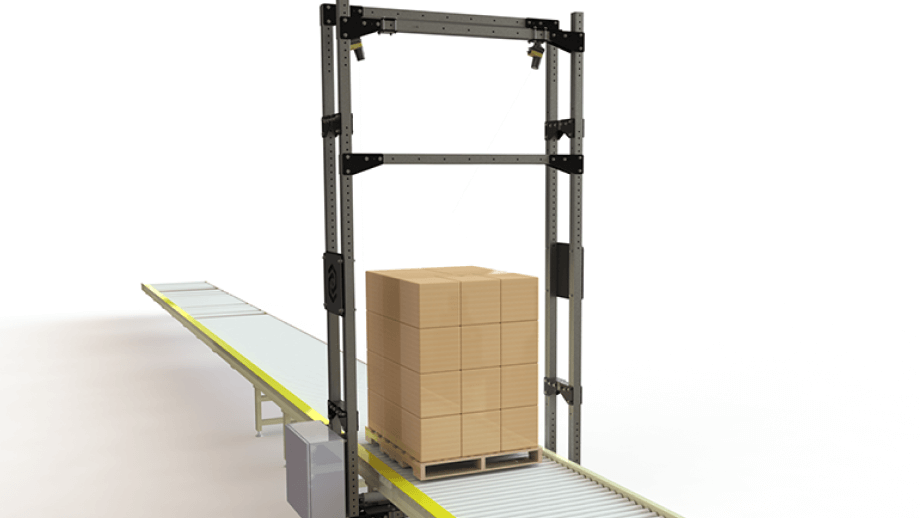

Guardian employs top-tier machine vision technology paired with advanced lighting techniques to ensure your product stays within the boundaries of your pallet or service board. It inspects and communicates with your line PLC whenever a defective pallet load is detected, enabling operators to rectify the issue before it leads to a crash.
Product Capabilities
- Detects overhang of products from the top to the bottom of the load
- Identifies issues with any type of load or dunnage
- Recognizes loose plastic wrap hanging outside the pallet
- Detects crooked and skewed stacks on pallets
- Identifies improper placement of pallets onto service boards
- Reduces crashes in automated storage and
- ASRS systems
- Seamlessly integrates into any ASRS intake process

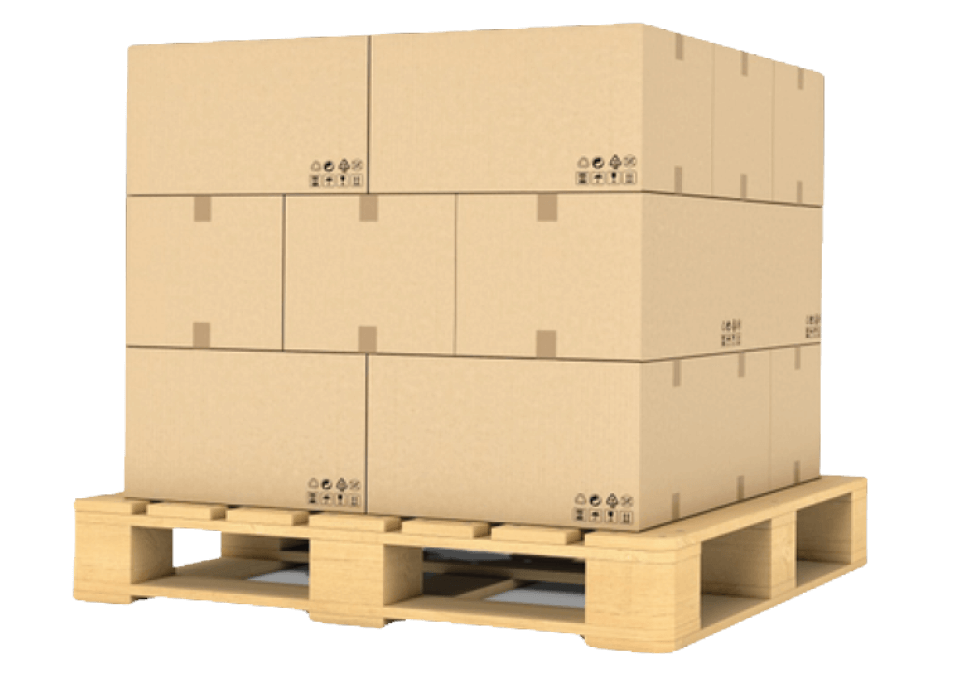

Inspect the Entire Perimeter of Your Pallets
- Top & Bottom Corner Angles
- Top & Bottom Edge Inspect
- Right & Left Edge Inspect
- Top & Bottom Corner Radius
- Standard Pallet Dimensions
- Width: 54”
- Length: 54”
- Height: 77”
